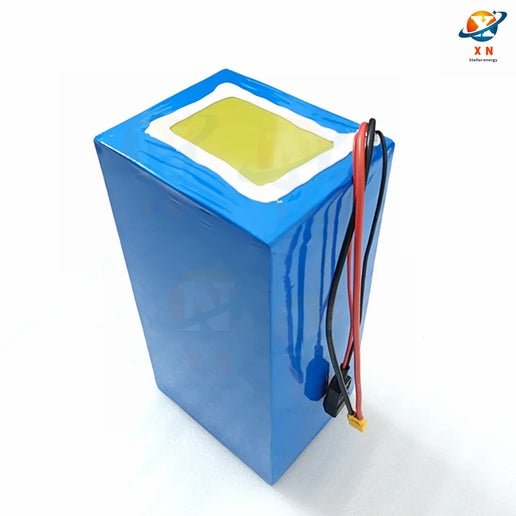

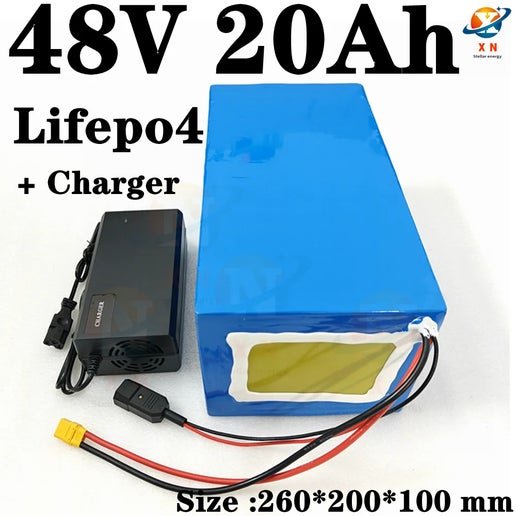

48V 20AH Lithium Battery

Feature :

1. It is built in high quality 48v 50A BMS manfactured by IC and MOS from Japan .

2. It is built by Improtect brand 3.2v 20Ah lifepo4 Prismatic 5C high drain 100A cells with only 1 ohm internal resistance .

3.support 1000W, 1200w, 1500w ,2000W motor

Specification:

• Voltage: 48 V
• Capacity: 20 AH
• With Built-in High quality BMS ,Battery have overcharge, over discharge, over current, short circuit, charge equalization of automatic identification and protection circuit.
• Battery Size :260*200*100 mm
• Type :LiFePo4 Battery pack
• Weight: 7.6Kg
• Standard Charge Current   5A
• Max Charge Current          30A
• Max Charge Voltage         58.4V DC
• Battery Resistance    ≤10mΩ
• Rated Discharge Current     50A
• Max continual Discharge Current  : 60A ( can be customized)
• Pulse Discharge Current : 120A
• Discharge Cut-off Voltage :42.5V
• Charging method : CC/CV(Constant Current Constant Voltage)
• Lifecycles : More than 6000 times .

Working temperature

Charge Temperature  0~45°C

Discharge Temperature  -20~65°C

Retention of charge (store in one month) ≥95%

Applications: E-Bike, Electric Bike, E-Scooter, Electric Scooter,electric skateboard,power wheelchair.etc.

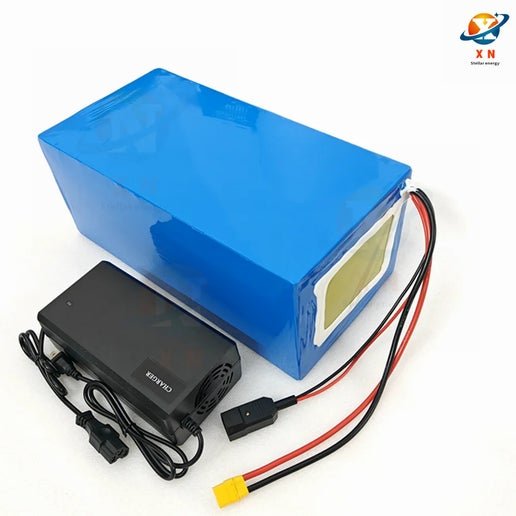

Packing list :

1. 1pcs Great 48V 20Ah Battery

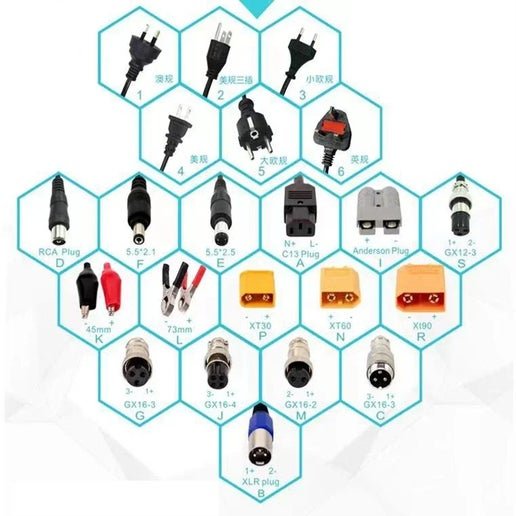

2. 1pcs High Quality 58.4V 5A lifepo4 charger with EU US AU plug which can be used in your country.
